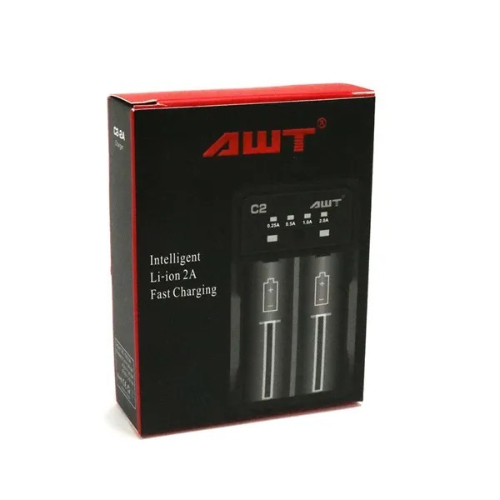

AWT - C2-2A INTELLIGENT - BATTERY CHARGER

AWT C2‑2A Intelligent Fast‑Charge Battery Charger is a dual‑bay USB-powered charger compatible with most rechargeable cells (Li‑ion / Ni‑MH / Ni‑Cd), including 18650, 26650, and smaller formats. Featuring an advanced smart‑IC design, it auto‑detects cell type and status to apply the optimal charging algorithm (CC, CV, or trickle). Charge rates are adjustable to 0.25 A, 0.5 A, 1.0 A or 2.0 A for fast, safe, and convenient charging.

Key Features

• 1 or 2‑cell charging: 2.0 A max on a single slot; ~1.0 A per slot when dual‑charging
• Independent slot monitoring with 3‑colour LED feedback to indicate charging status
• Built‑in protections: overcharge cutoff, reverse polarity, short‑circuit, and thermal regulation
• Wide input support: AC 100–240 V or DC 12 V via micro‑USB; premium heat dissipation and CE/RoHS certified housing
• Compact & lightweight: approx. 132 × 75 × 35 mm, 120 g—ideal for home or travel
• Supports a range of cylindrical/flat‑top cells (10440–26650 sizes)

Usage & Safety Tips

• For full 2 A charge rate, use a 5 V/2 A USB adapter or wall‑plug rated for 2 A output
• Ensure correct battery insertion: positive end towards the spring, negative flat‑base towards the ribbed contact
• Remove batteries once fully charged to preserve cell life
• Charge only on a stable, non‑flamable surface; do not leave the charger unattended
• Do not use if the cell’s insulation (wrapper) is damaged—always use in battery cases or protective sleeves
